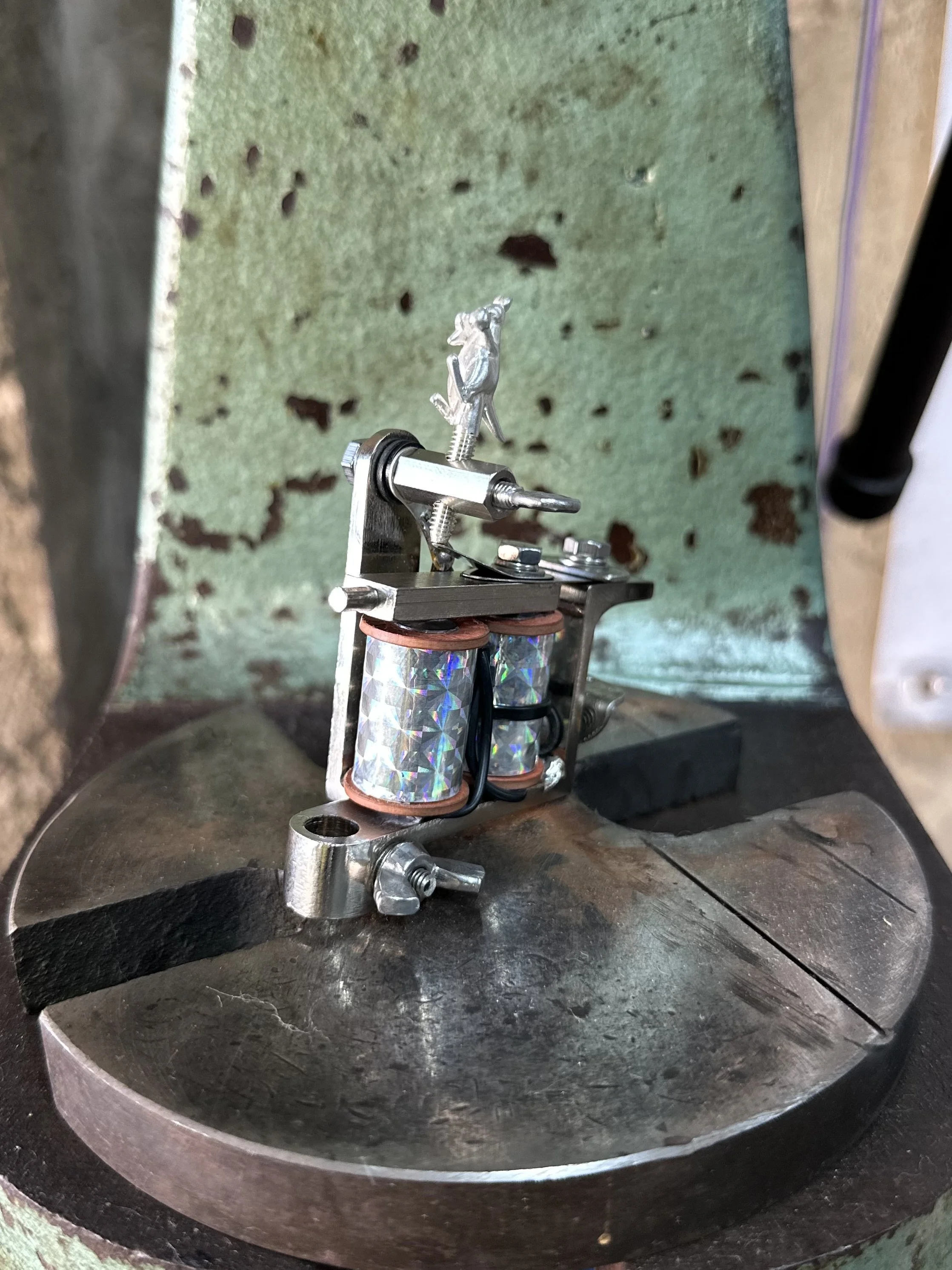

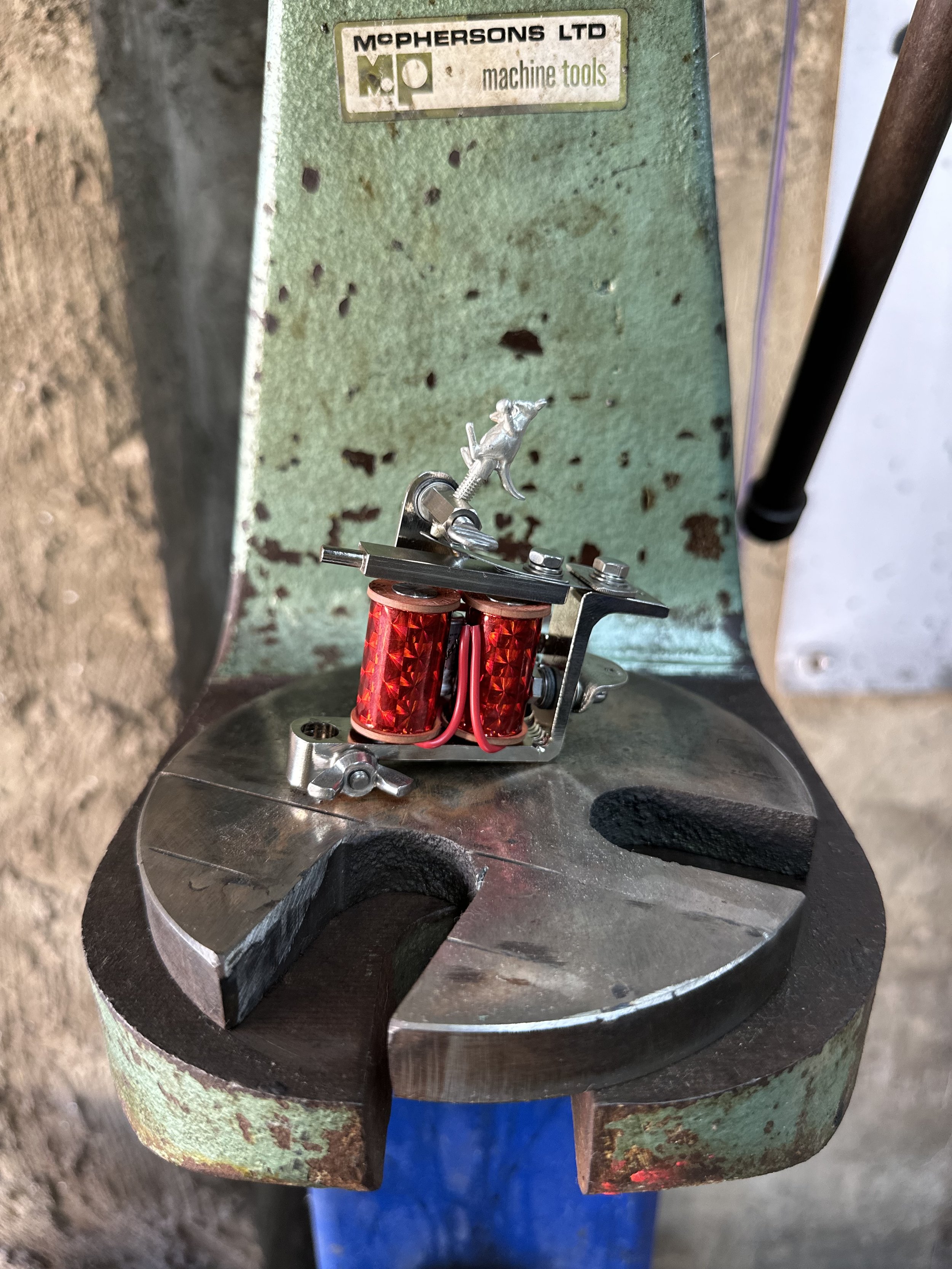

REYNOLDS LINER

$600.00
sold out

Inspired by one I couldn't forget.

Inspired by a machine I laid eyes on while getting tattooed by Johnny Dollar. One of those ones you don't forget — the kind of machine that makes you want to go home and start drawing things up. The Reynolds is my take on it: a liner with the look and feel of the old workhorses, built to modern tolerances and tuned to run hard. A bit of history on the bench, doing the work it was always meant to do.

Every machine comes standard with the Kanga Screw — a pure silver boxing kangaroo contact screw, cast locally in Melbourne. Developed alongside a mate who shared the same vision: an Aussie staple sitting proud on top of an Aussie machine. You won't find it anywhere else.

Inspired by one I couldn't forget.

Inspired by a machine I laid eyes on while getting tattooed by Johnny Dollar. One of those ones you don't forget — the kind of machine that makes you want to go home and start drawing things up. The Reynolds is my take on it: a liner with the look and feel of the old workhorses, built to modern tolerances and tuned to run hard. A bit of history on the bench, doing the work it was always meant to do.

Every machine comes standard with the Kanga Screw — a pure silver boxing kangaroo contact screw, cast locally in Melbourne. Developed alongside a mate who shared the same vision: an Aussie staple sitting proud on top of an Aussie machine. You won't find it anywhere else.

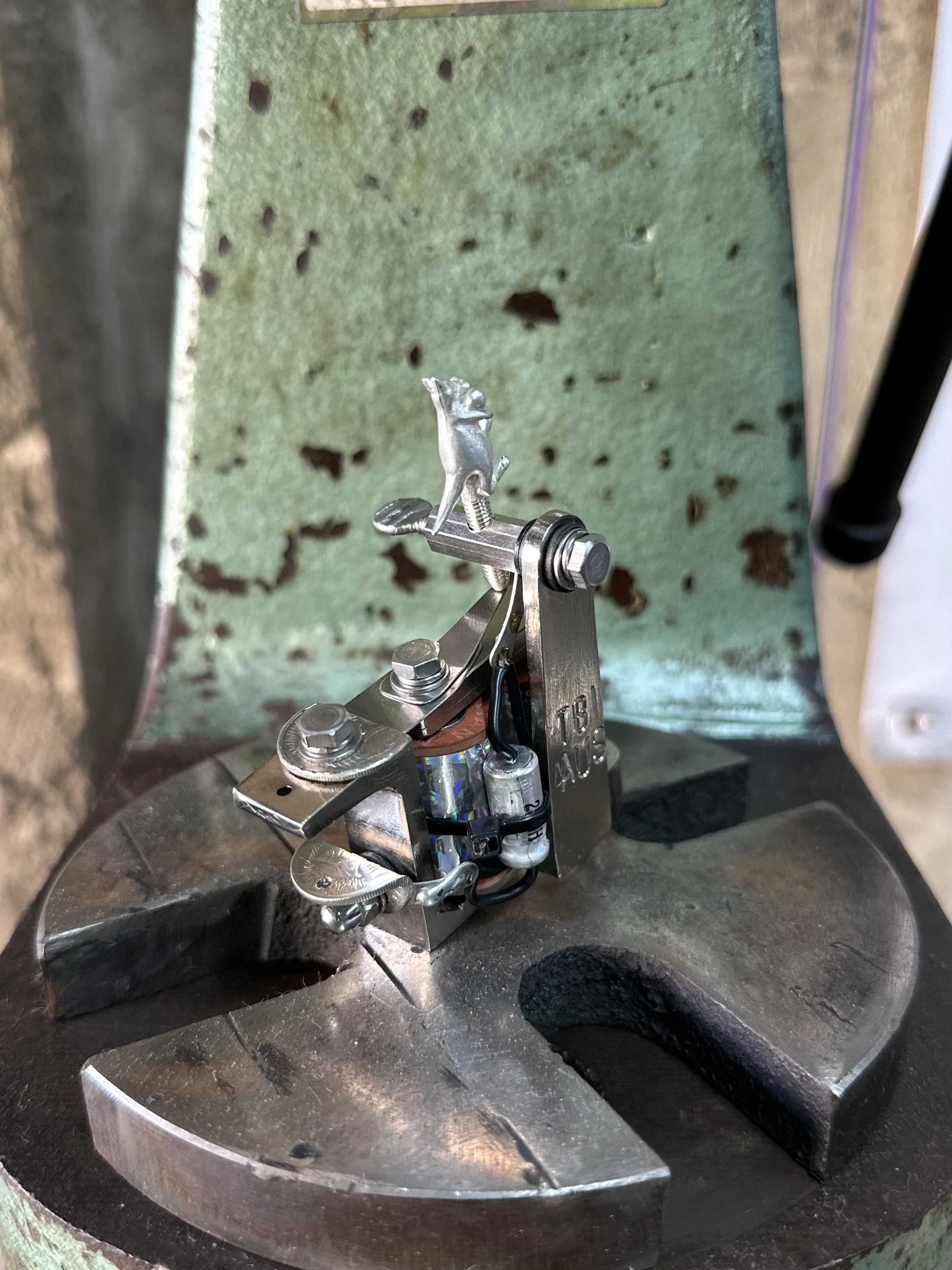

Side plate was laid out by hand in the shed after a fair bit of staring at the original, getting the proportions right and getting the feel right. Once it was drawn up, it was sent off to be laser cut locally, every Reynolds side plate is identical. Sharp, accurate, and properly Australian-made.

From the side plate up, every Reynolds Liner is hand built from raw stock — cut, machined, TIG welded and finished on the bench. The jigs for this frame were made specifically for the Reynolds, so every one comes off the bench inside the same tolerances and to the same high standard. Old-school feel, modern-day consistency.

Fitted as standard with the True Blue Iron vice — spring-loaded eccentric cam with a 304 stainless cam tooth that holds up under heavy use. Takes any tube style without splitting the base, without the mucking about. Less vibration, more rigidity, and a tool that gets out of the way of the work.

Frame material

mild steel

Best suited to

lining,
5–11RL

Coils

10 wraps, 33uF Sprague capacitor

Vice

True Blue Iron eccentric cam

Recommended voltage

7–9 volts — higher end for larger groupings

Spring setup

0.49 stainless spring stock

Kanga Screw — pure silver, cast in Melbourne

Contact screw

The nitty-gritty

The machine fitted with the Kanga Screw, a set of spare springs, and a handshake through the post. Packed properly and sent tracked.

what you get

Every machine is made one at a time, in the order it comes in. Standard builds usually take anywhere from 6–8 weeks from receiving your order. If you're in a hurry, give me a yell and I'll see what I can do (additional charges may apply). After something more personal? Have a look at a Custom Build.

build time

Custom build
