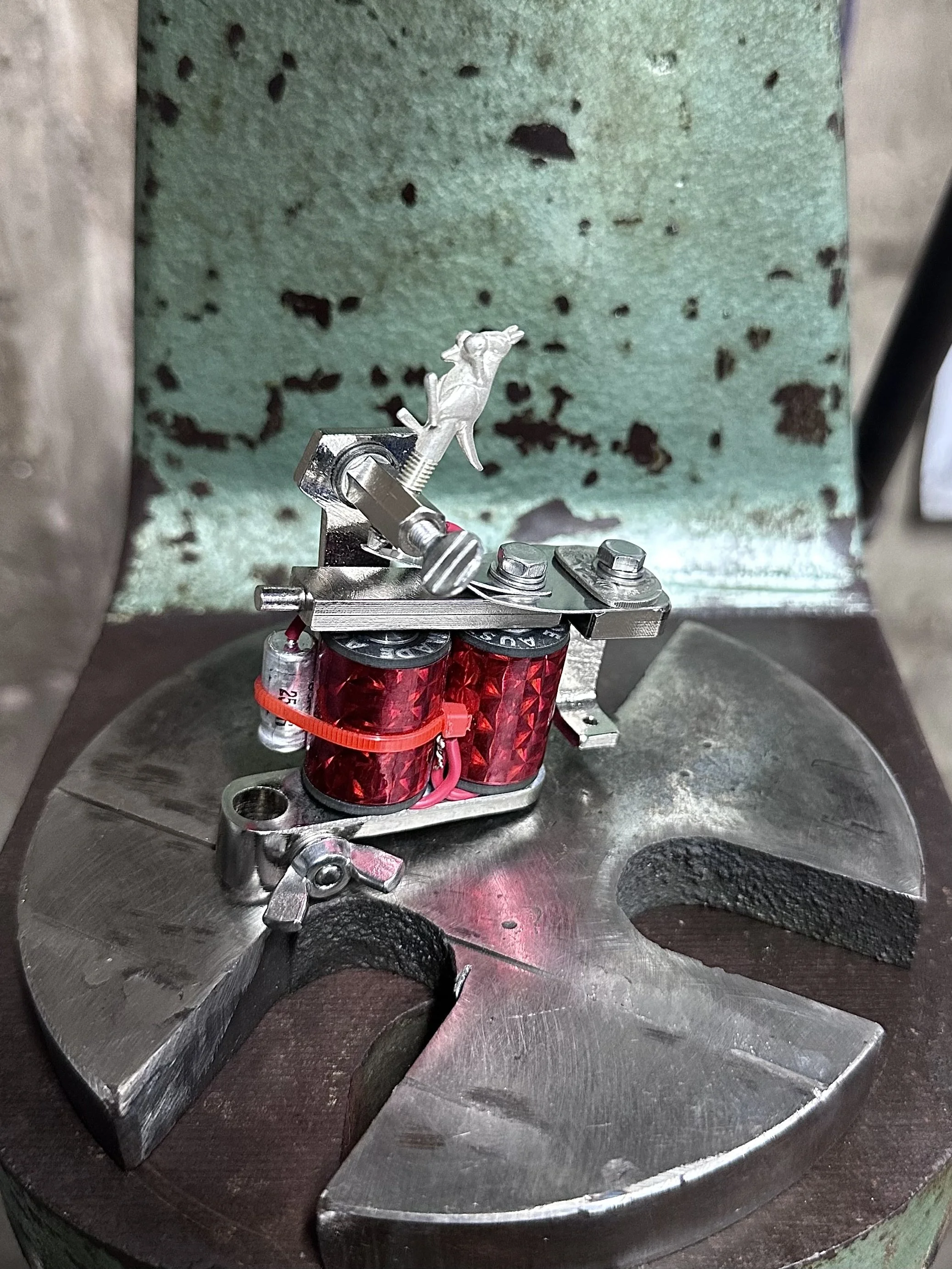

The original side plate for the Oz Liner started life on a piece of paper in the shed. Laid out by hand, transferred to a drawing, then sent off to be laser cut locally — and from that drawing, every Oz Liner side plate is identical. Sharp, accurate, and Australian-made from start to finish.
From there, every Oz Liner is built up from raw stock — cut, machined, TIG welded and finished by hand on the bench. There's a set of jigs purpose-built for this frame that keep every machine within the same tolerances and to the same high standard, every time round. That's how you get a one-off feel with the consistency of something properly engineered.
Every one comes fitted with the True Blue Iron vice — my own design, spring-loaded eccentric cam with a 304 stainless cam tooth that'll cop the day in, day out abuse without giving up on you. Takes any tube style, no splitting the base, no mucking about. Less vibration, more rigidity, more time tattooing.
Frame material
mild steel
Best suited to
lining,
7–14RL
Coils
10 wraps, 33uF Sprague capacitor
Vice
True Blue Iron eccentric cam
Recommended voltage
7–9 volts depending
on ya hand
Spring setup
0.49 stainless spring stock
Kanga Screw — pure silver, cast in Melbourne
Contact screw
The nitty-gritty
The machine fitted with the Kanga Screw, a set of spare springs, and a handshake through the post. Packed properly and sent tracked.
what you get
Every machine is made one at a time, in the order it comes in. Standard builds usually take anywhere from 6–8 weeks from receiving your order. If you're in a hurry, give me a yell and I'll see what I can do (additional charges may apply). After something more personal? Have a look at a Custom Build.
